CB-5000
Changbo
The Spout Pouches can be filled and Capped:
Specfication of Spout bag filling capping machine/stand up pouch filling machine:

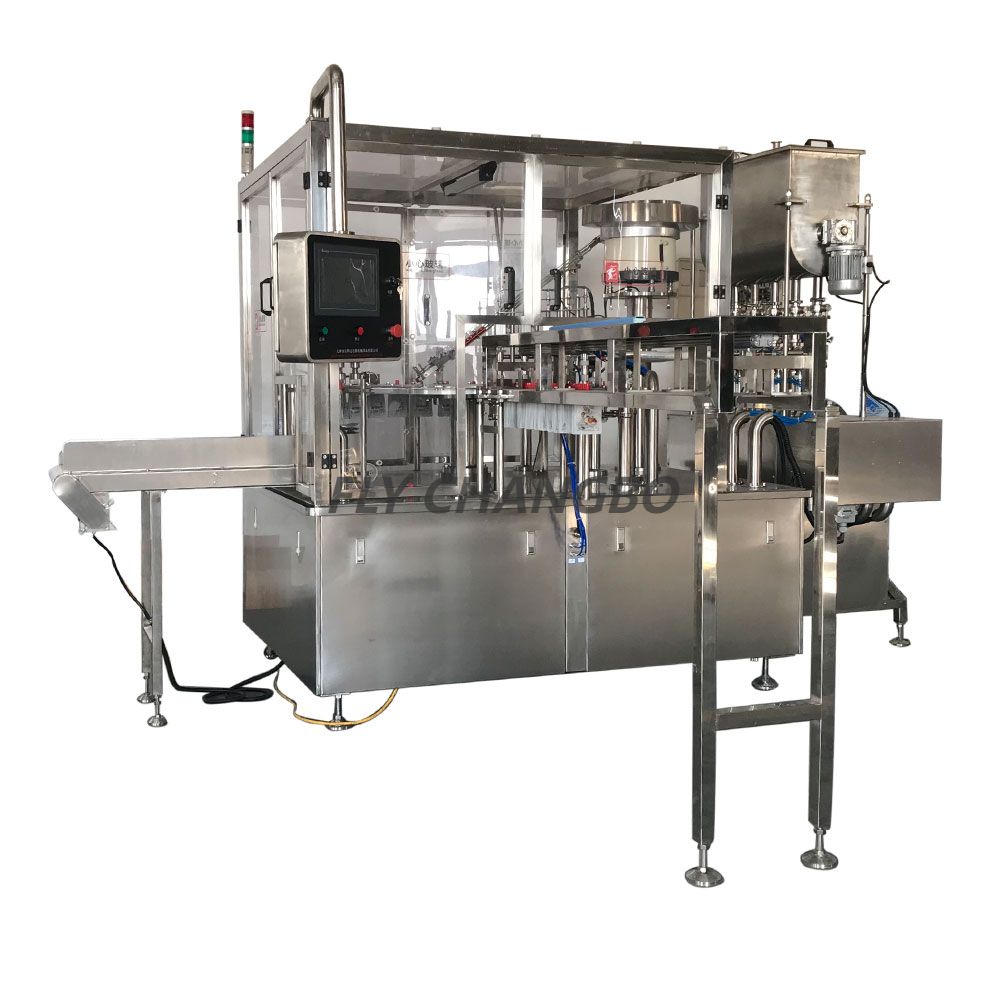

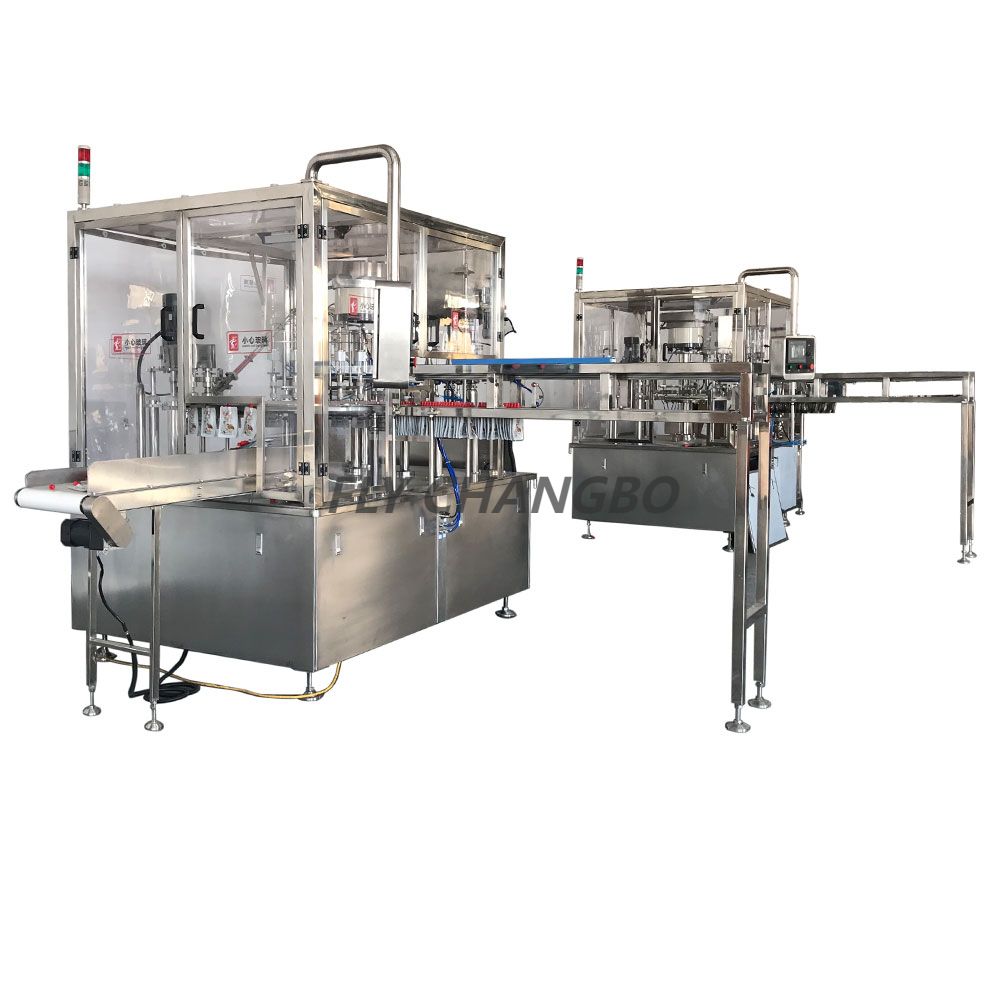

1. Model CB-5000 is Spout bag filling capping machine/stand up pouch filling machine.
2.It can packing any liquid such as juice yogurt, water, jelly, soymilk, cooking oil, liquid soap etc. Also used for the semi fluid,example tomato sauce,honey,fruit pasteJam etc.
3. Fully automatic pouch supply, filling, cap supply, cap sorting, capping.
4. It with 5 nozzles max packing speed 5000-5500 bags/hour.
5. International spare parts brand.
Functions of Spout bag filling capping machine/stand up pouch filling machine:
CB-5000 Spout bag filling capping machine/stand up pouch filling machine used for any liquid’s automatic bags supplying, filling and capping, such as juice, milk, jam, yogurt, seasonings, food industry and medicine, daily chemical, pesticide ant other industries.
Full function, rational structure, easy operation and maintenance. It conforms to food hygiene standard. This machine combines machine, electricity and air. Electric and pneumatic components adopt imported devices, reliable performance, long service life, convenient repair, and install leakage protection, protect personal safety.
Working process of Spout bag filling capping machine/stand up pouch filling machine:
(1)Touch screen operation device
(2)Fully automatic pouch supply
(3)Photoelectric detection and tracking. No bag no filling device.
(4)Automatic quantitive filling.
(5)Fully automatic bag cleaning
(6)Fully automatic cap supply
(7)Fully automatic capping
(8)Fully automatic bag dropping
(9)Automatic control the liquid level.
(10)Emergency Stop device
Technical parameters of Spout bag filling capping machine/stand up pouch filling machine:
Model: | CB-5000 |
Capacity: | 5000-5500 Bags/hour |
Filling Range: | 50-500 ml |
Accuracy | +-1.5% |
Power: | 380V, 50Hz |
Weight: | 400KG |
Dimension:(L*W*H) | 2050*1200*1750 (mm) |
Air pressure | 6Kgf/cm2 |
